Name: Overhead Aluminium Cupboard For Campervans — Standard
Brand: Dirt Van Overland
SKU: DVO500
Price: 250.0 AUD
Availability: InStock

Overhead Van Storage,
Engineered For The Road

Born from van life and backed by engineering.
Durable, DIY-fit aluminium overhead cupboards that solve real storage problems.
For campervan builders & adventurers, as well as tradies and couriers.

Built for the Journey

Cupboards

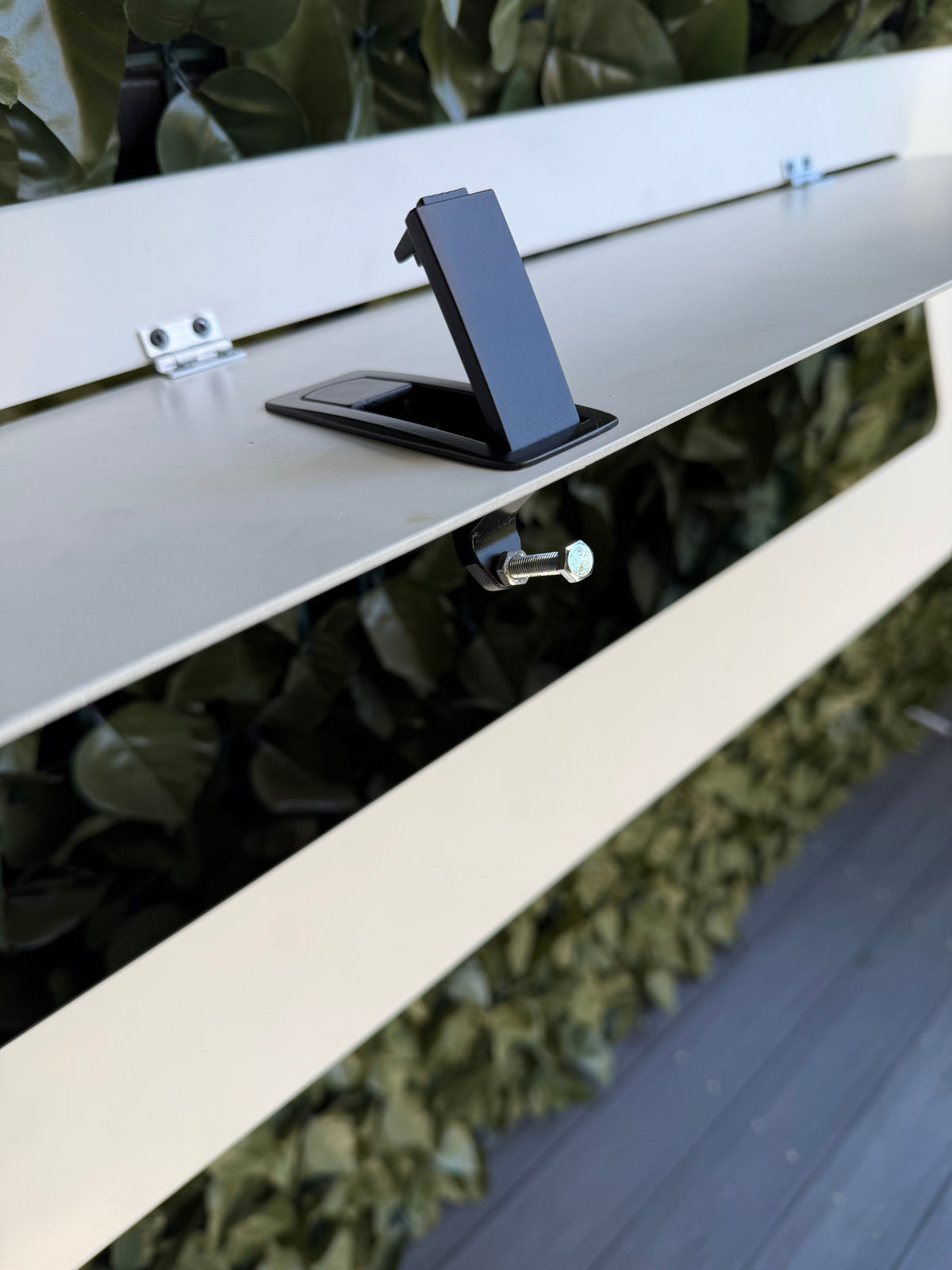

Hardware

Merchandise

Engineered & laser-cut for strength

DIY-friendly built for hands-on legends

Courier-ready delivery across Australia

Lightweight & easy to install

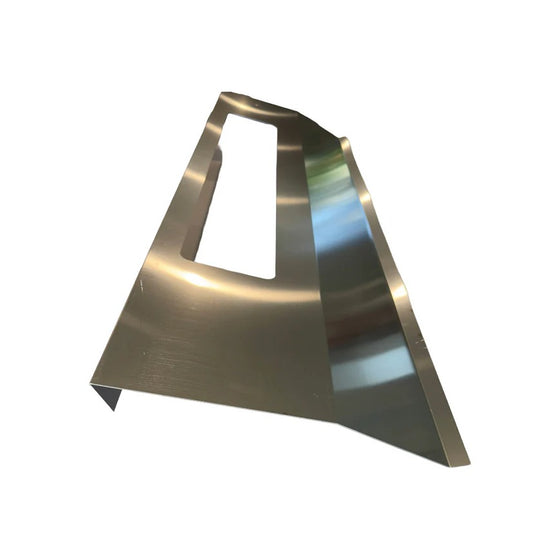

Overhead Aluminium Cupboard For Campervans — Slimline

Aluminium

Easy Install Cupboards

Designed for quick DIY installs — no specialist required. Perfect fit. Clean finish. Built to last.

Shop Now

How It Works

1. Order Online – Choose the size that suits your van

2. Delivered Fast – Direct from our Australian fabricator

3. Install in Minutes – No fuss. No drama.

4. Custom Finish It – Paint, upholster, or keep it raw

$250.00

Tax included. Shipping calculated at checkout.

Size

500mm wide

980mm wide

1200mm wide

1550mm wide

[{"id":46636509167753,"title":"500mm wide","option1":"500mm wide","option2":null,"option3":null,"sku":"DVO500","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Overhead Aluminium Cupboard For Campervans — Standard - 500mm wide","public_title":"500mm wide","options":["500mm wide"],"price":25000,"weight":3340,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":46636344475785,"title":"980mm wide","option1":"980mm wide","option2":null,"option3":null,"sku":"DVO980","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Overhead Aluminium Cupboard For Campervans — Standard - 980mm wide","public_title":"980mm wide","options":["980mm wide"],"price":28500,"weight":3340,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44360164212873,"title":"1200mm wide","option1":"1200mm wide","option2":null,"option3":null,"sku":"DVO1200","requires_shipping":true,"taxable":true,"featured_image":{"id":36818872631433,"product_id":8162045788297,"position":2,"created_at":"2025-07-31T11:43:27+10:00","updated_at":"2026-04-16T13:57:46+10:00","alt":null,"width":1200,"height":1600,"src":"\/\/dirtvanoverland.com\/cdn\/shop\/files\/153976_1.jpg?v=1776311866","variant_ids":[44360164212873]},"available":true,"name":"Overhead Aluminium Cupboard For Campervans — Standard - 1200mm wide","public_title":"1200mm wide","options":["1200mm wide"],"price":33000,"weight":3340,"compare_at_price":null,"inventory_management":"shopify","barcode":"","featured_media":{"alt":null,"id":28073353609353,"position":2,"preview_image":{"aspect_ratio":0.75,"height":1600,"width":1200,"src":"\/\/dirtvanoverland.com\/cdn\/shop\/files\/153976_1.jpg?v=1776311866"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44468345340041,"title":"1550mm wide","option1":"1550mm wide","option2":null,"option3":null,"sku":"DVO1550","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Overhead Aluminium Cupboard For Campervans — Standard - 1550mm wide","public_title":"1550mm wide","options":["1550mm wide"],"price":39500,"weight":4800,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}]

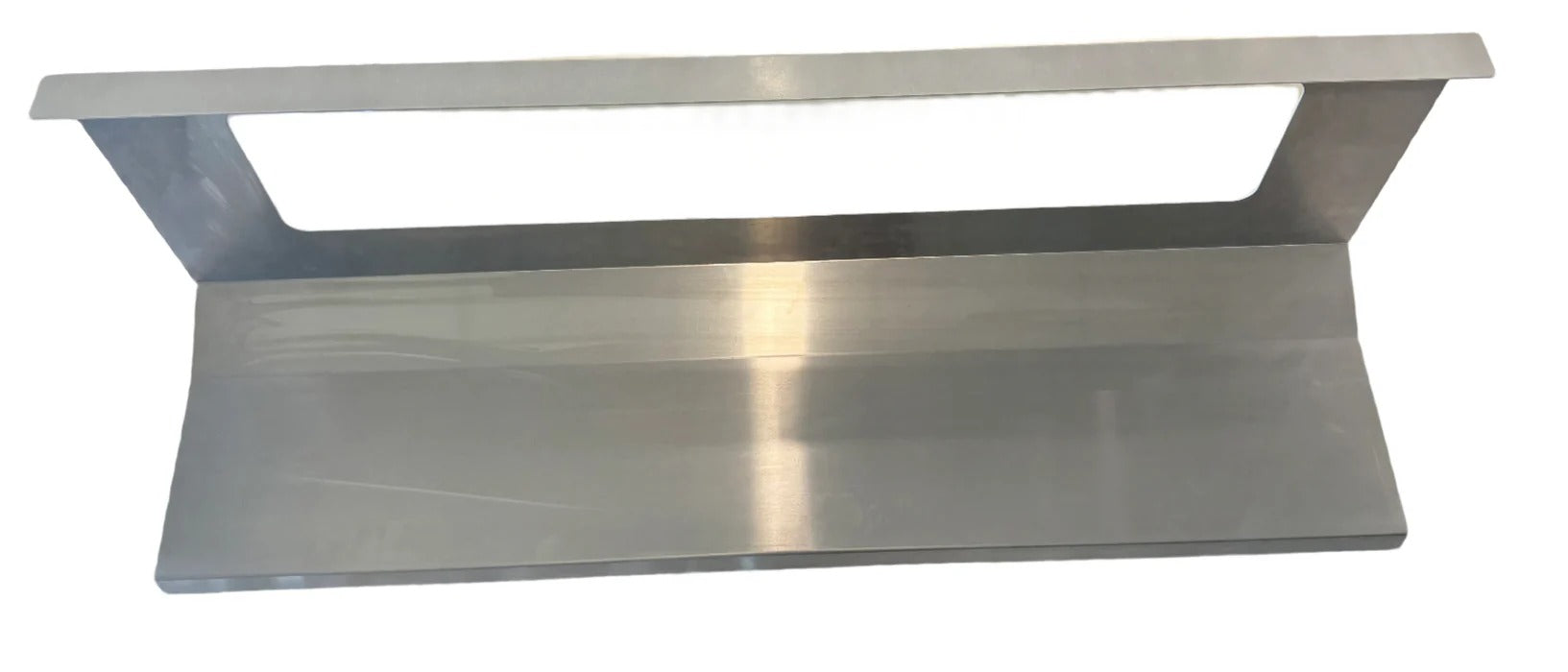

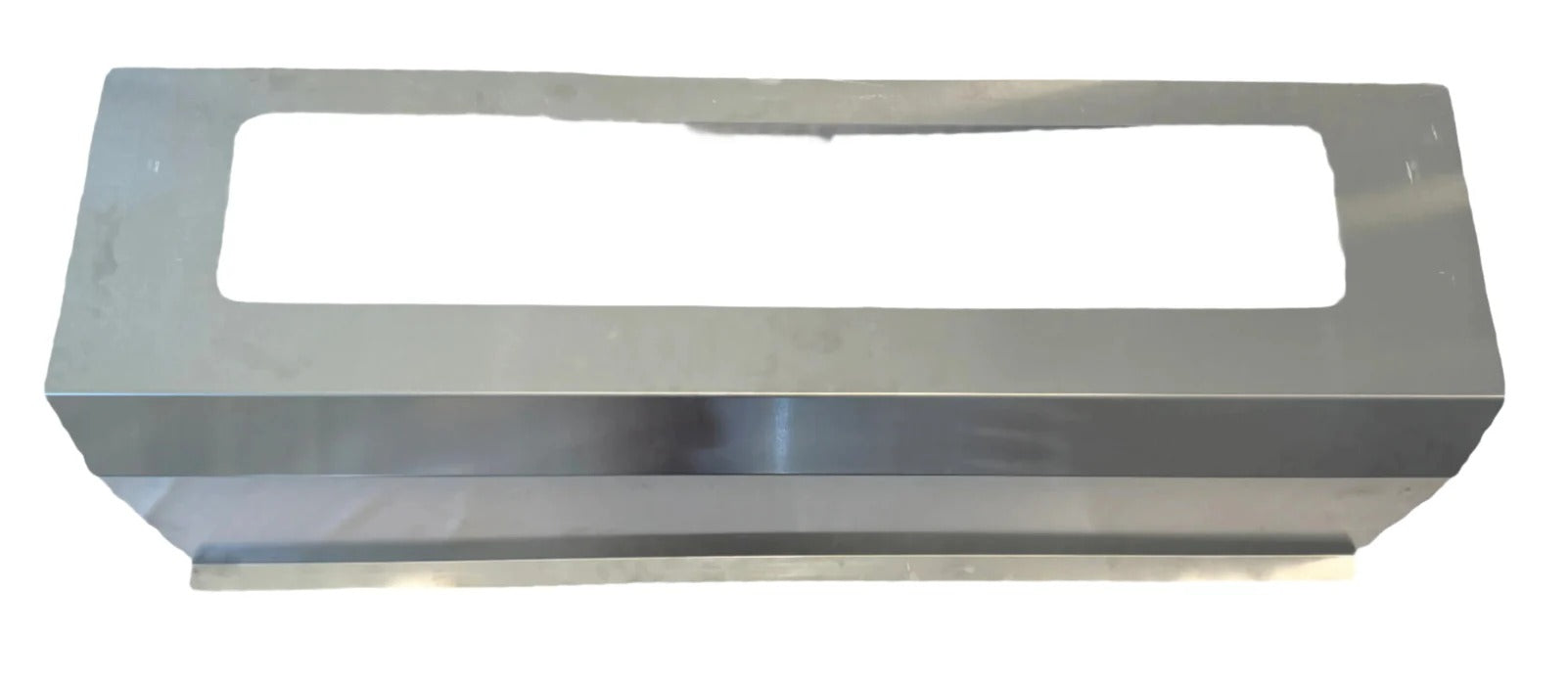

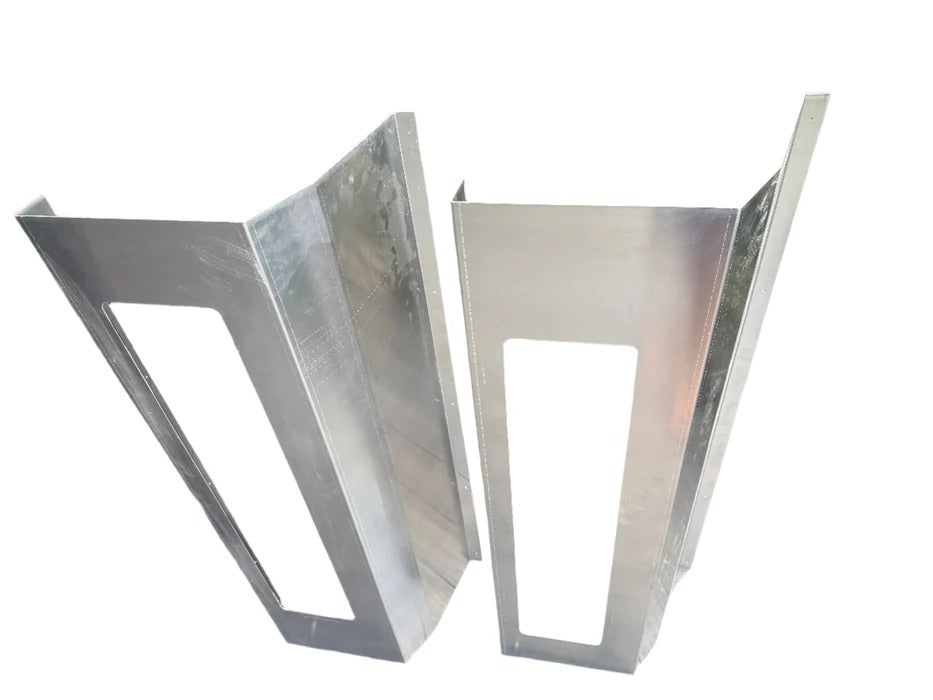

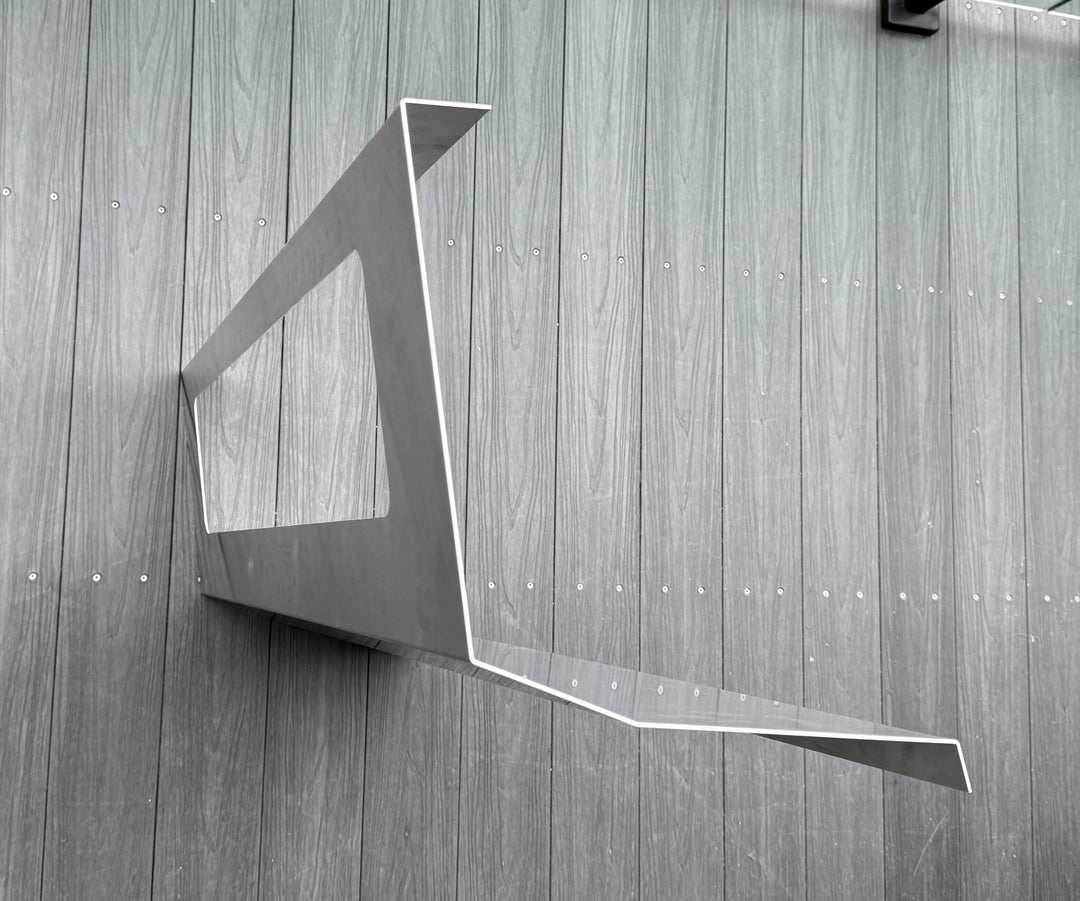

OVERHEAD ALUMINIUM CUPBOARD FOR CAMPERVANS — STANDARD | RAW FINISH

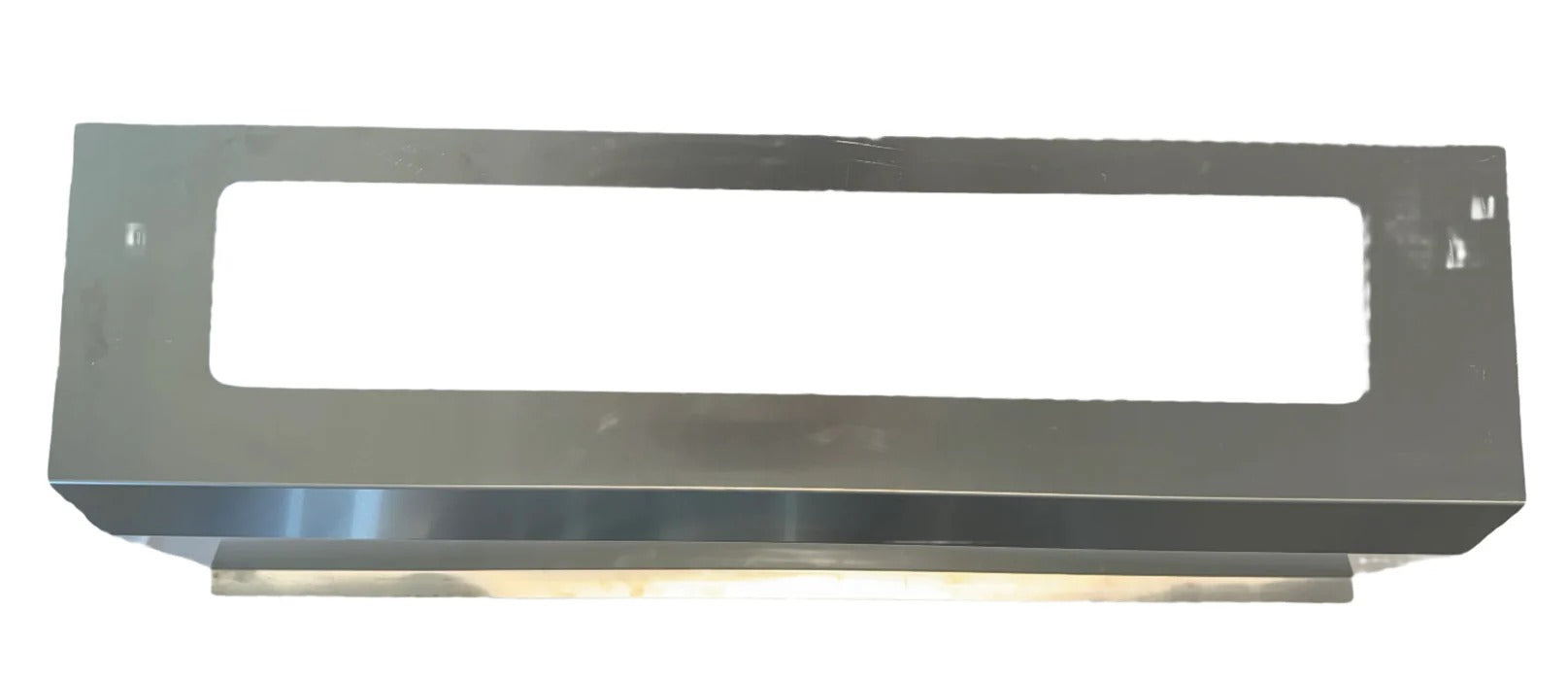

Australia's most popular overhead storage solution for DIY campervan builds. The Standard Overhead Aluminium Cupboard fits VW Crafter, Mercedes Sprinter, and Toyota HiAce vans — laser cut from raw aluminium with a 50kg load rating and a generous 378mm depth for maximum storage capacity.

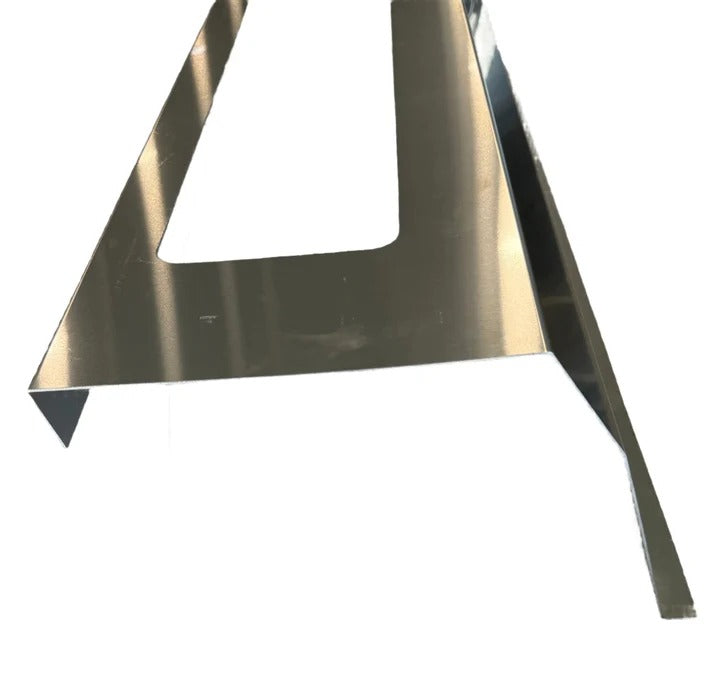

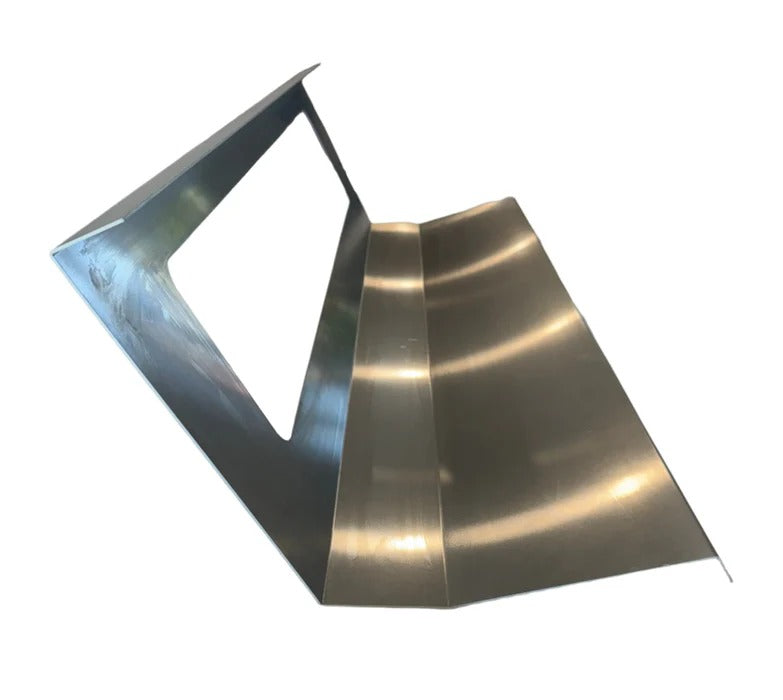

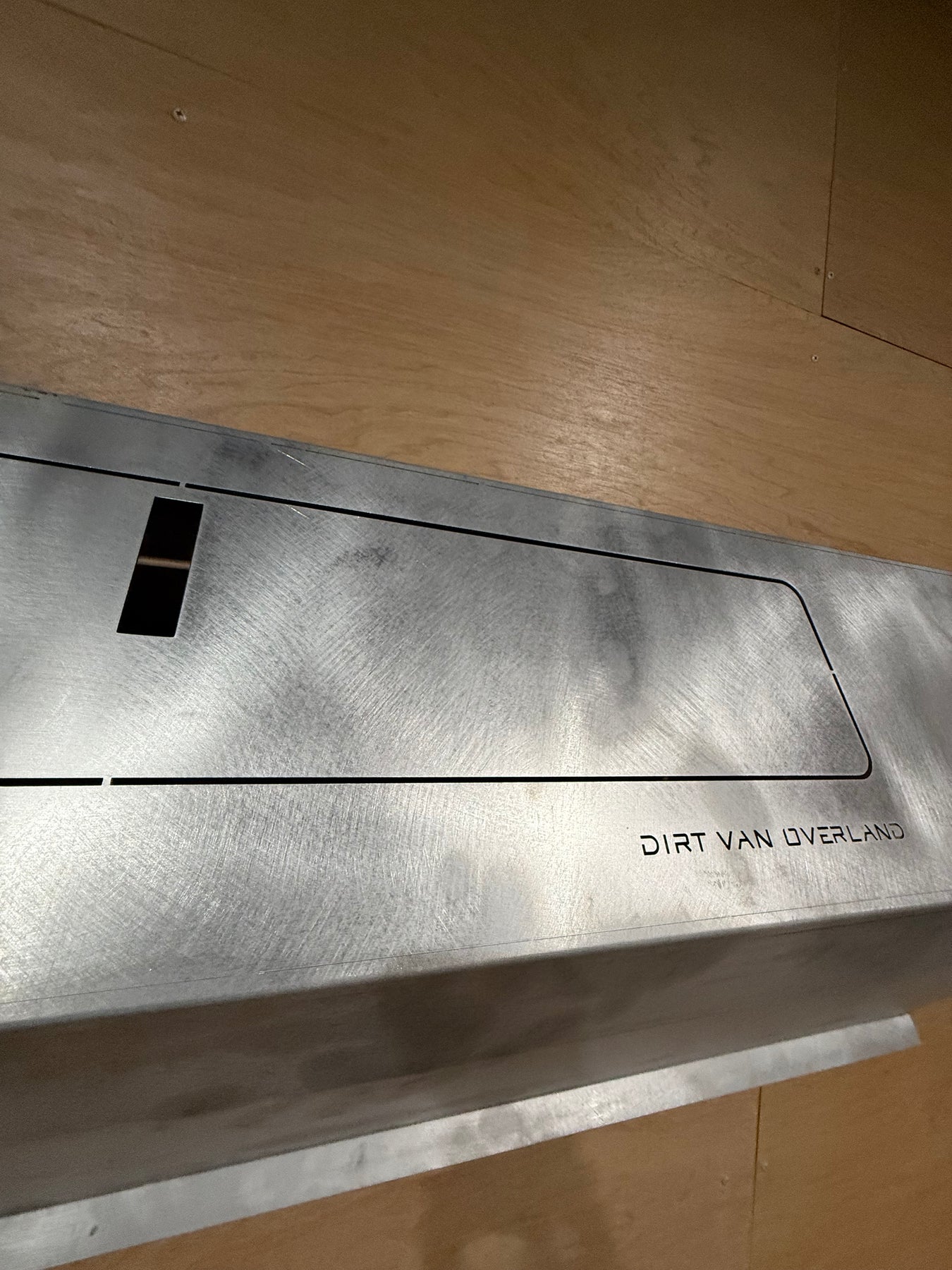

Supplied in raw aluminium, this unit is laser cut, folded, and deburred for easy installation and a clean finish — ready for you to customise and install above kitchens, beds, or living zones in your van. A central door cutout is pre-cut into the cupboard, positioned 50mm from the top edge, making it easy to use our hinge & latch kit available on our site.

Key Features:

Raw aluminium finish – ready to customise your way

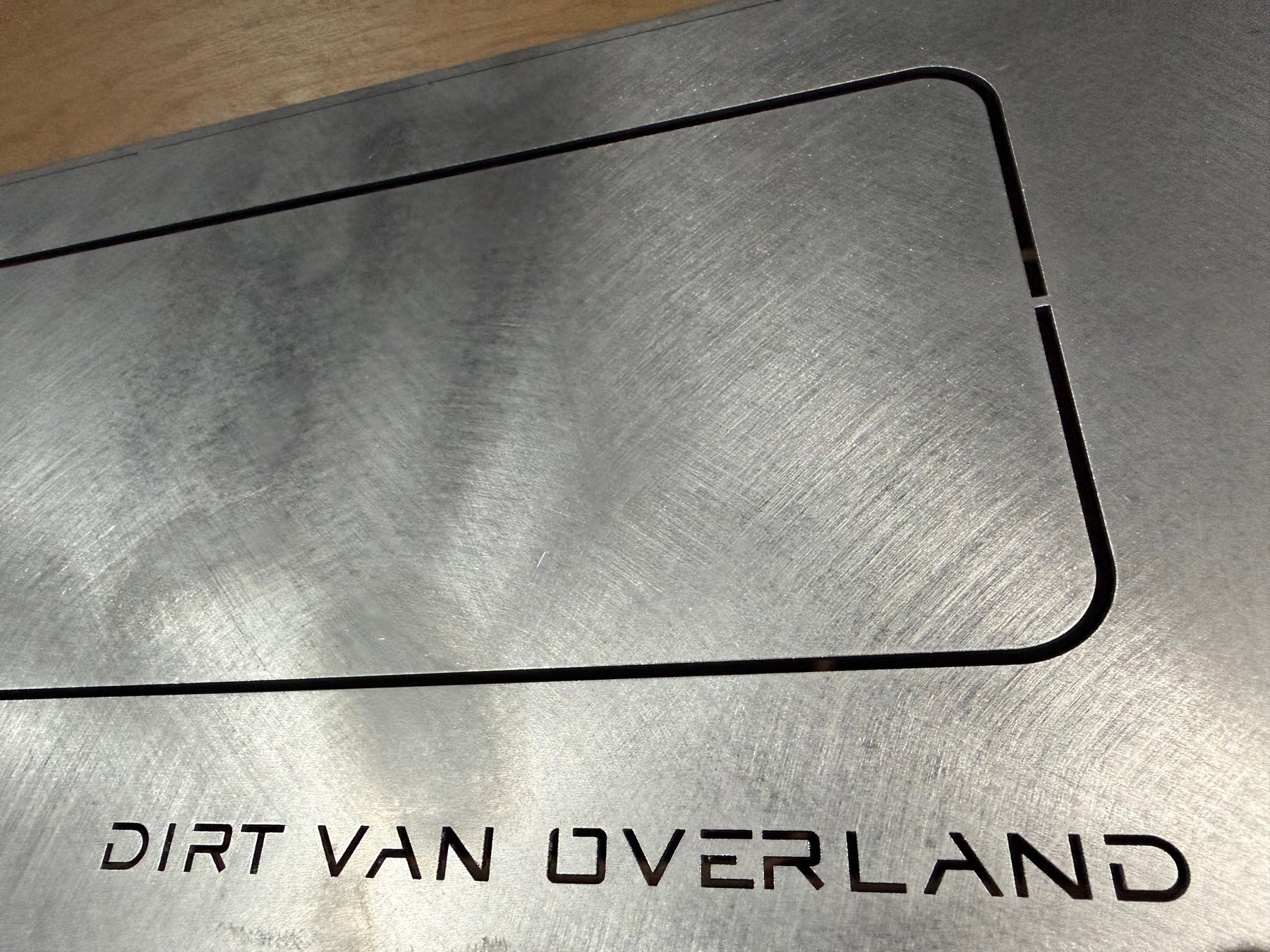

Pre-cut door opening (centred, 50mm from top)
Laser cut, folded and deburred — rounded edges for safety
Deep 378mm internal depth — more storage than the Slimline

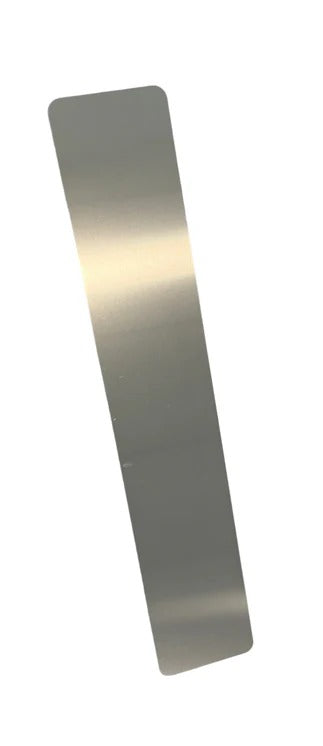

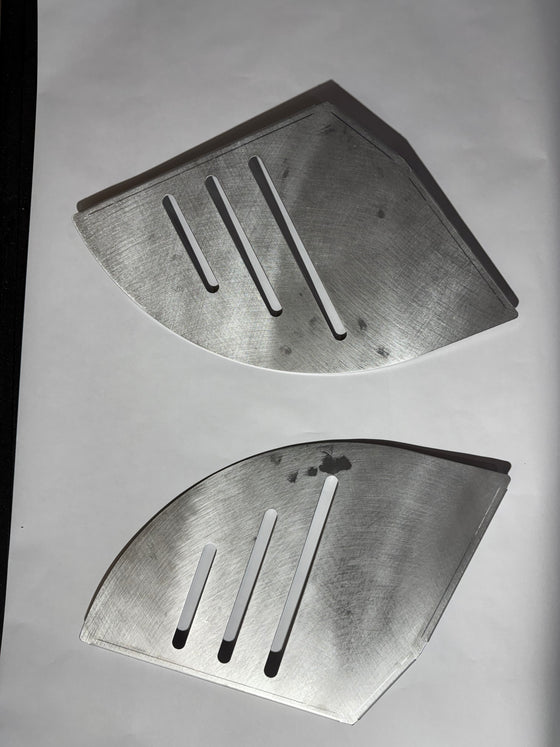

End caps available for a fully finished look

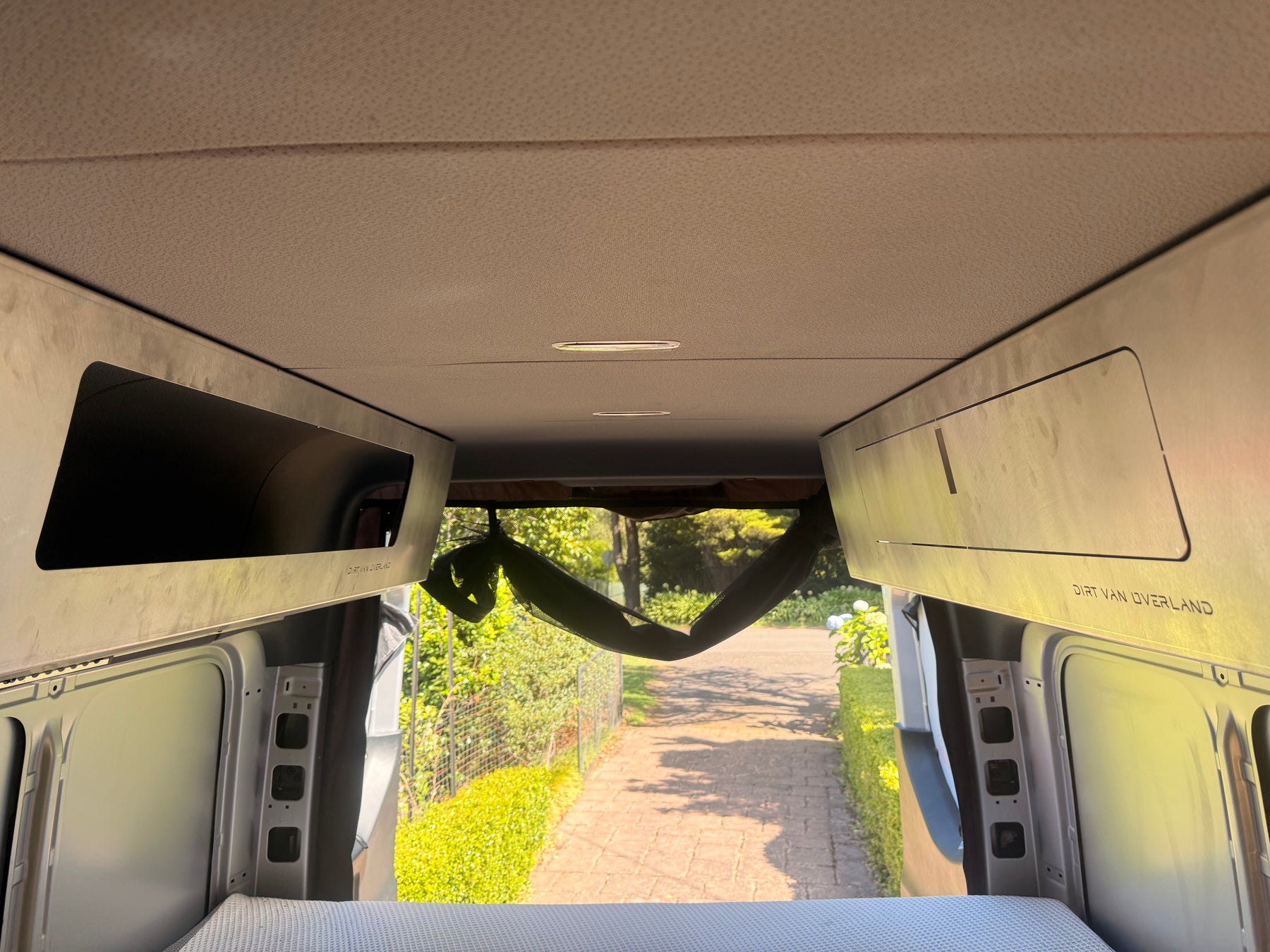

Ideal above kitchenettes, workbenches, or sleeping zones

Vehicle Compatibility:

VW Crafter – High Roof & Low Roof
VW Crafter with Fiberglass Roof
Mercedes Sprinter – High Roof & Low Roof
Toyota HiAce – High Roof

Other van models may be compatible but are not yet tested.

Approximate Dimensions:

External: 500, 980, 1200 or 1550mm (L) × 400mm (H) × 378mm (D)
Weight: Approx. 1.8kg to 4.8kg
Load Rating: 50kg (tested to 80kg)

Included:

1 × Standard Overhead Aluminium Cupboard
1 × Pre-cut opening for door installation

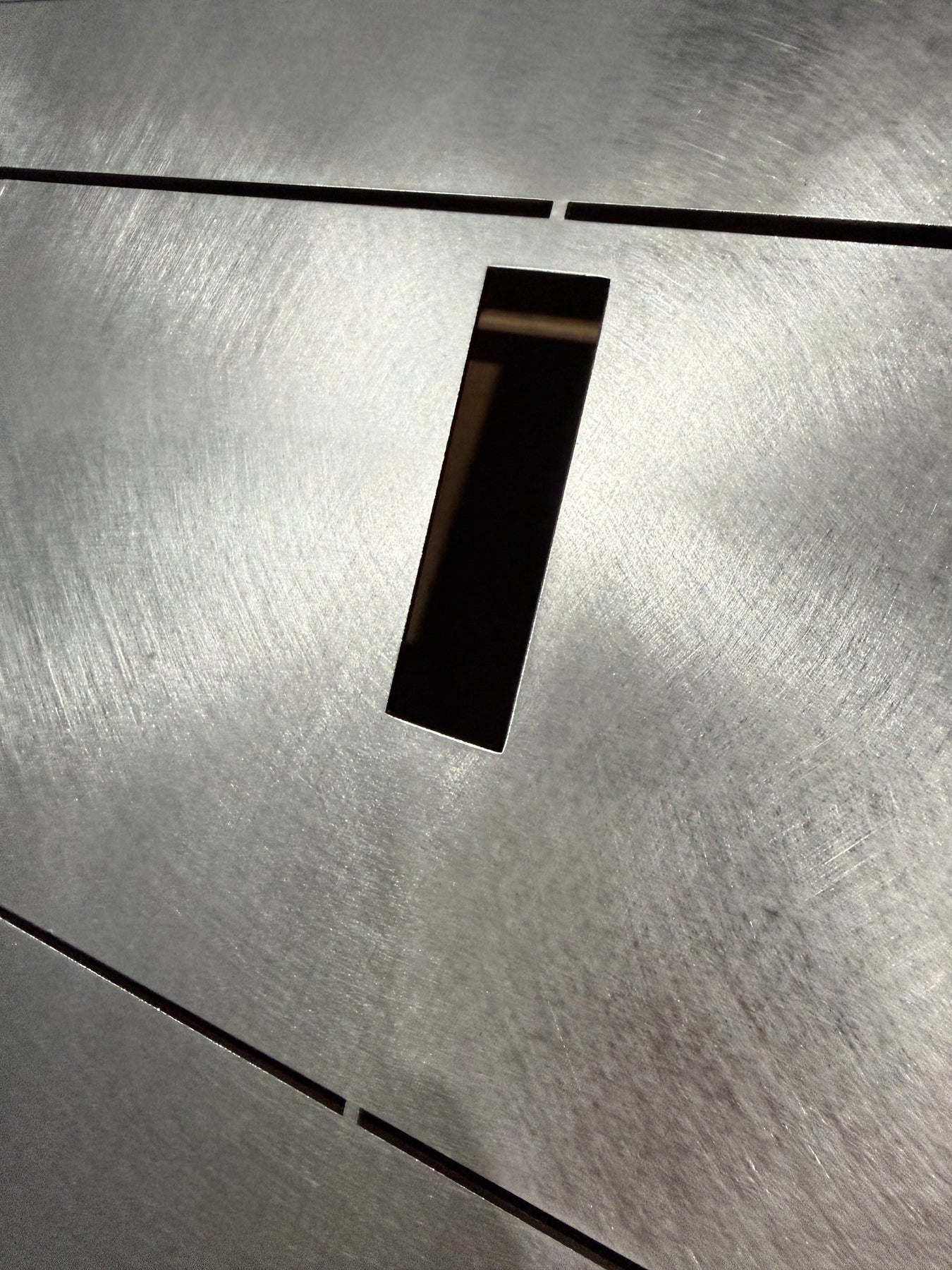

Hinge & door stopper holes included (kits available on our website)

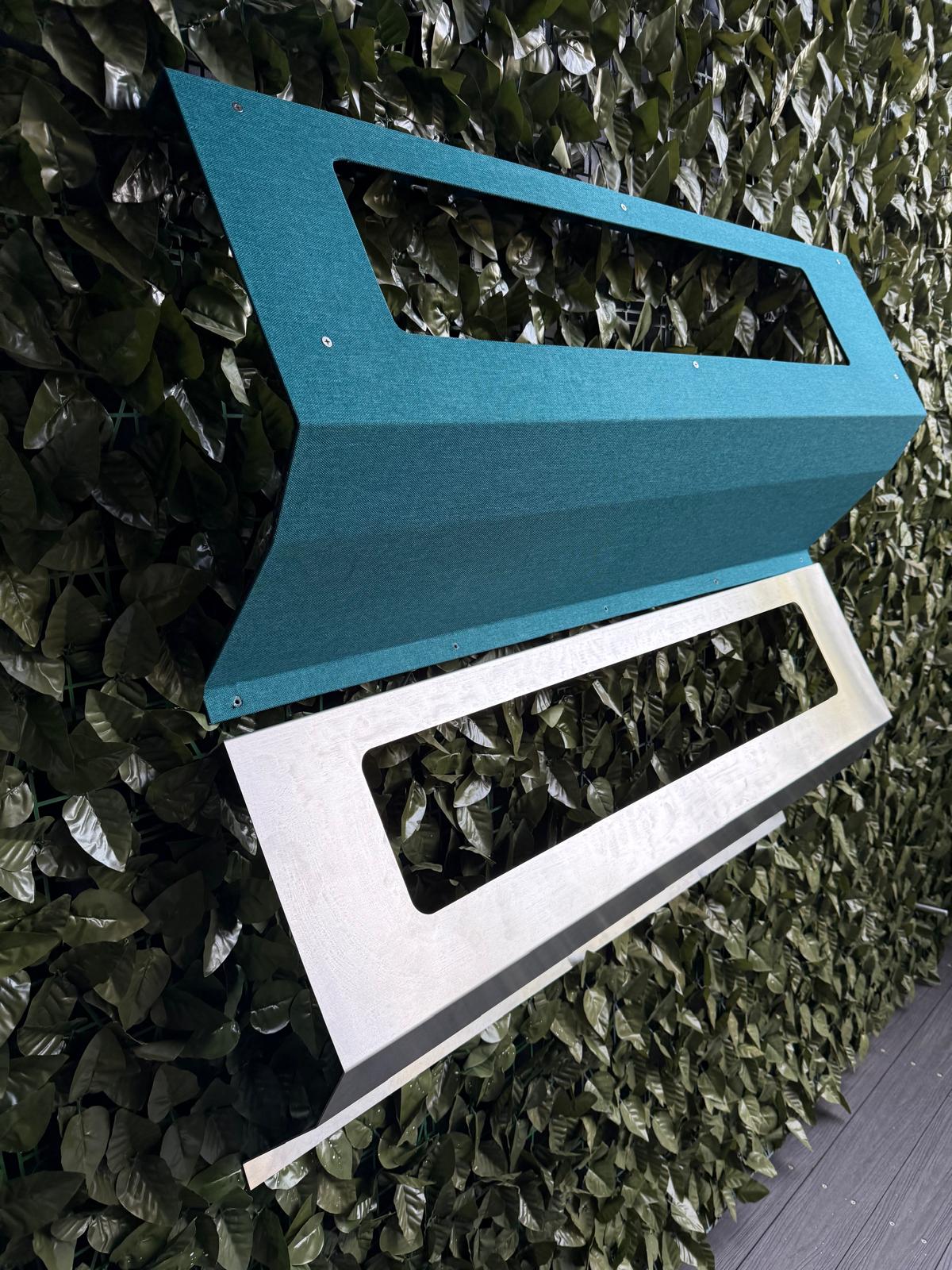

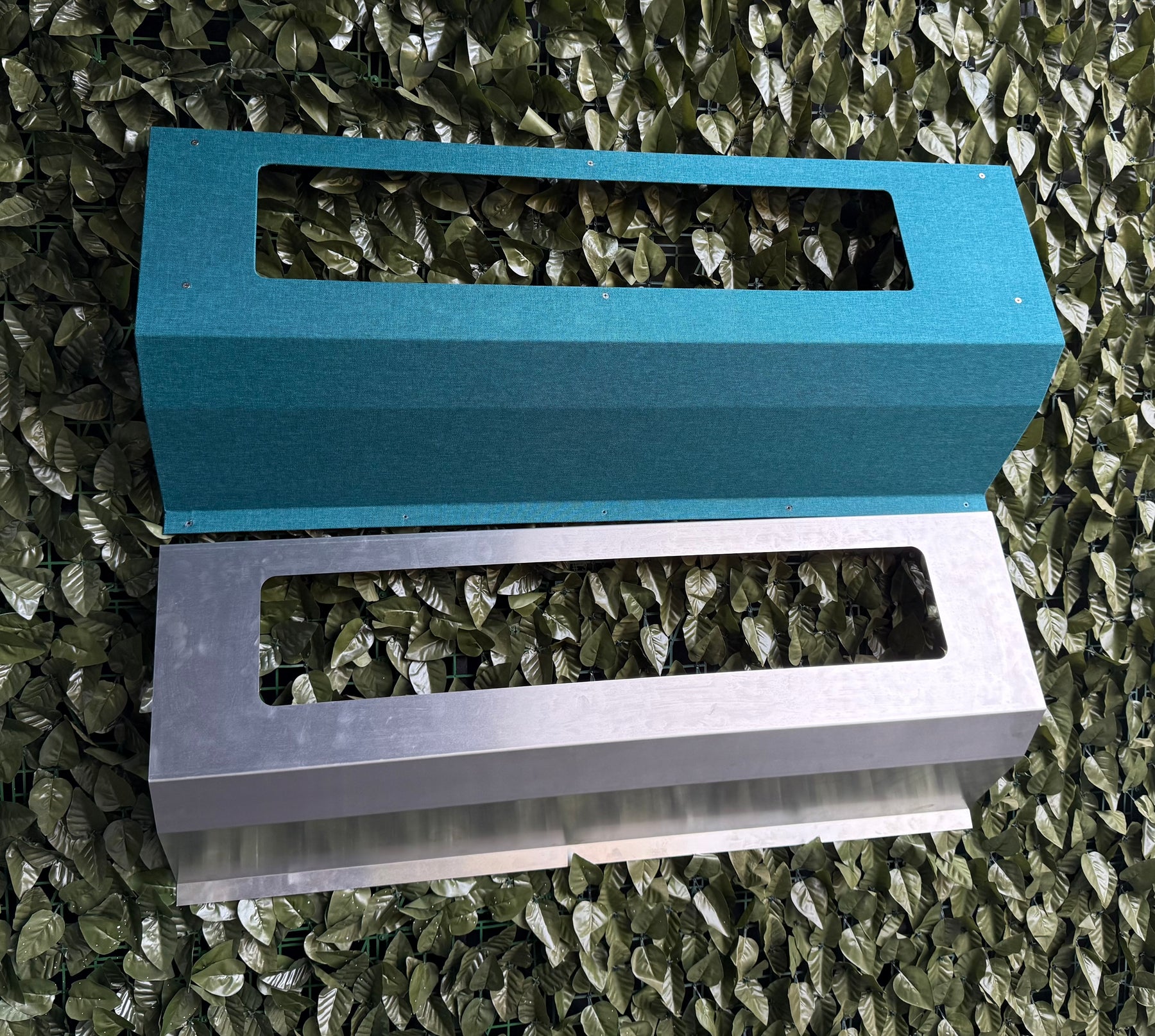

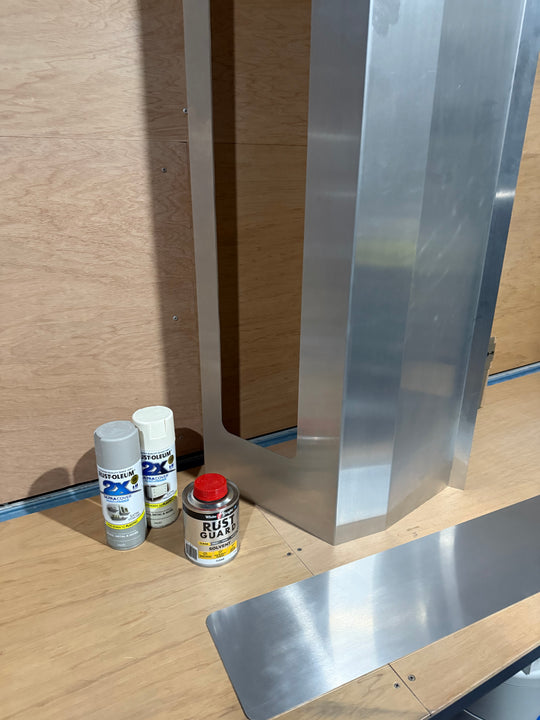

Finishing Options:

Supplied raw — full creative freedom. Recommended finishing methods:

Powder coating

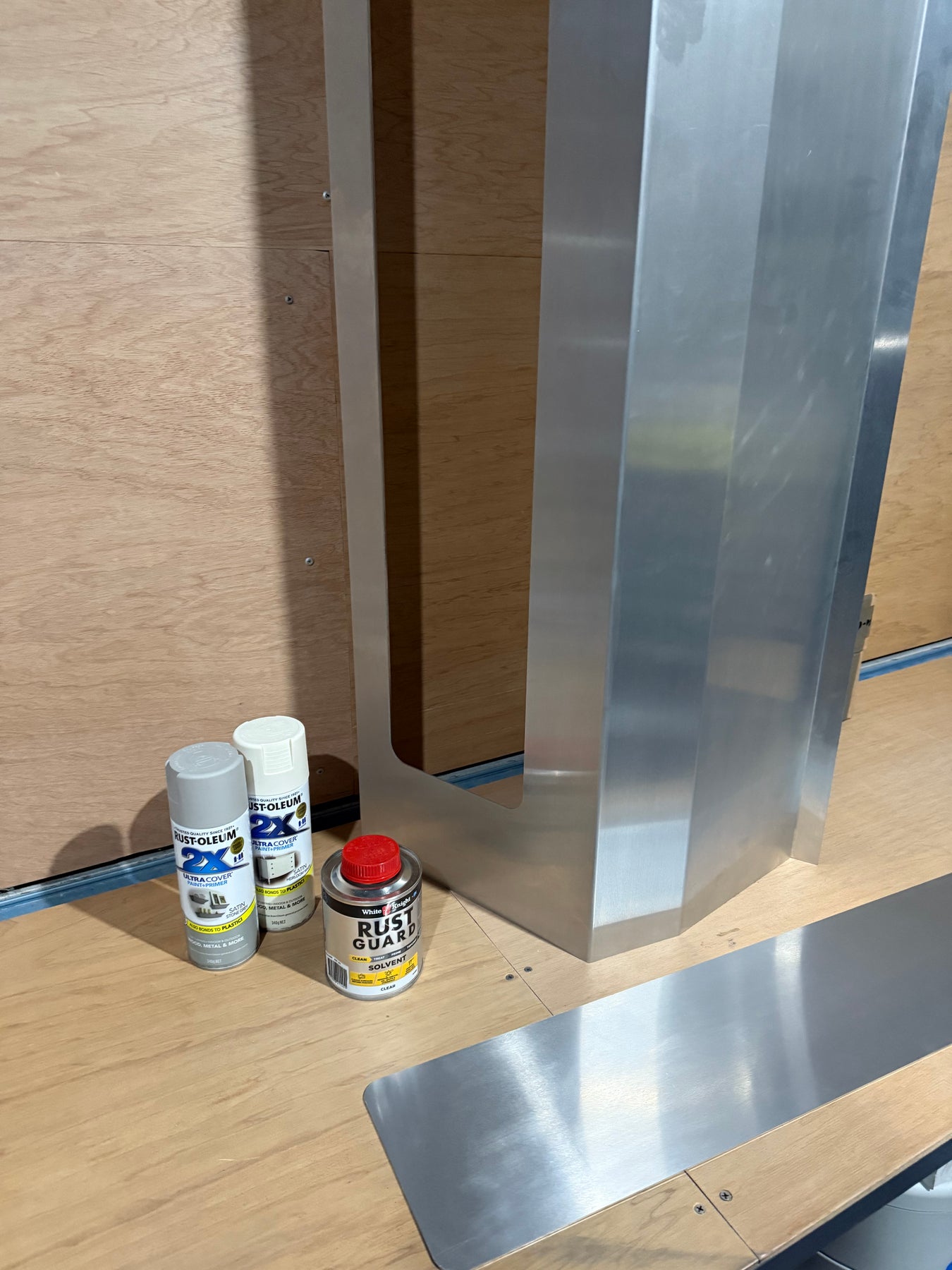

Spray painting (DIY or professional)
Hand painting (roller or brush)
Upholstering (inside & out for a premium feel)
Leave raw for an industrial look

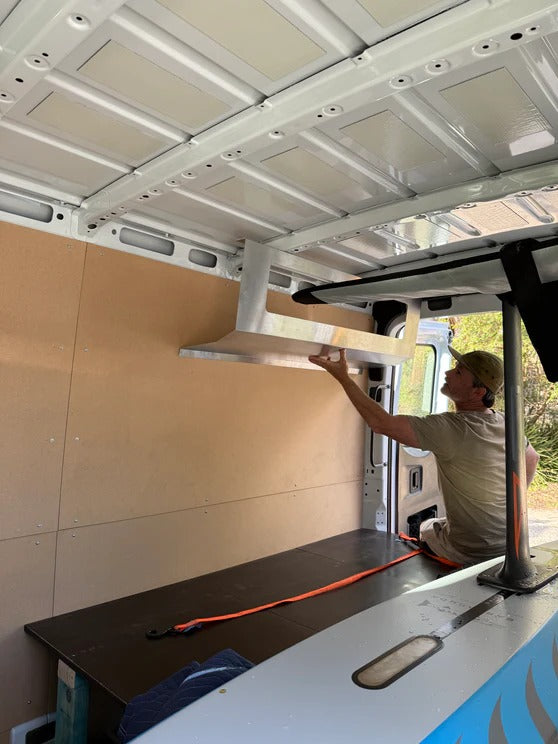

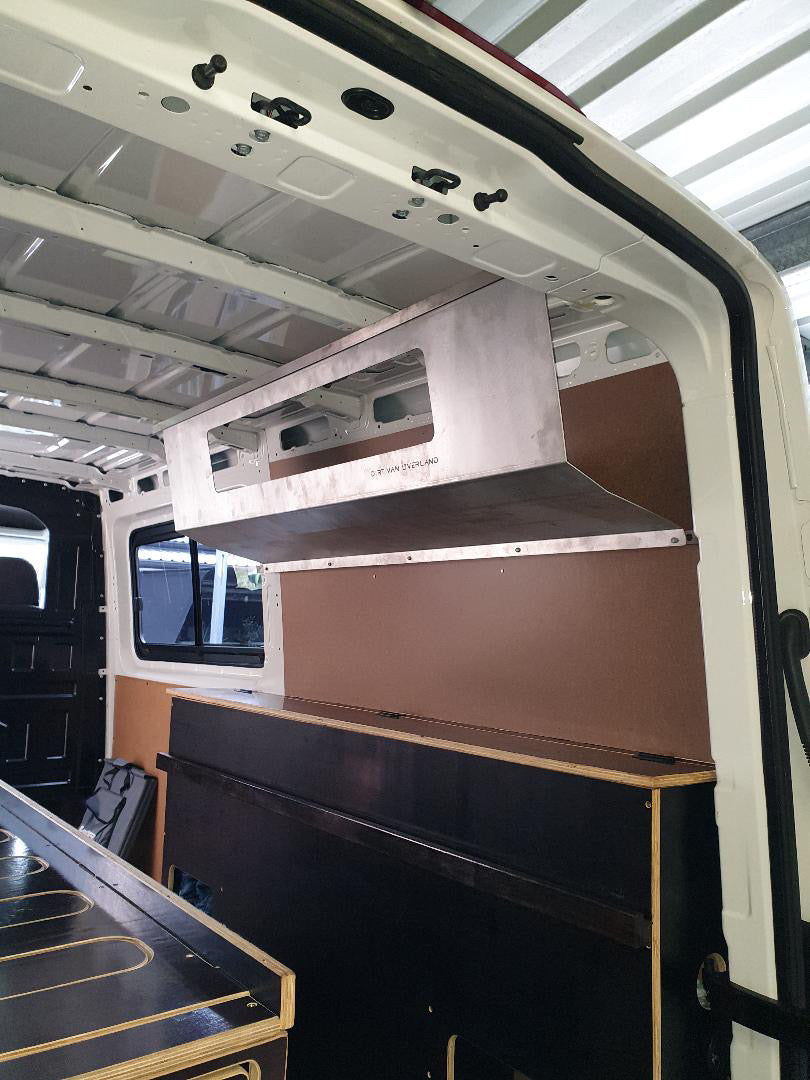

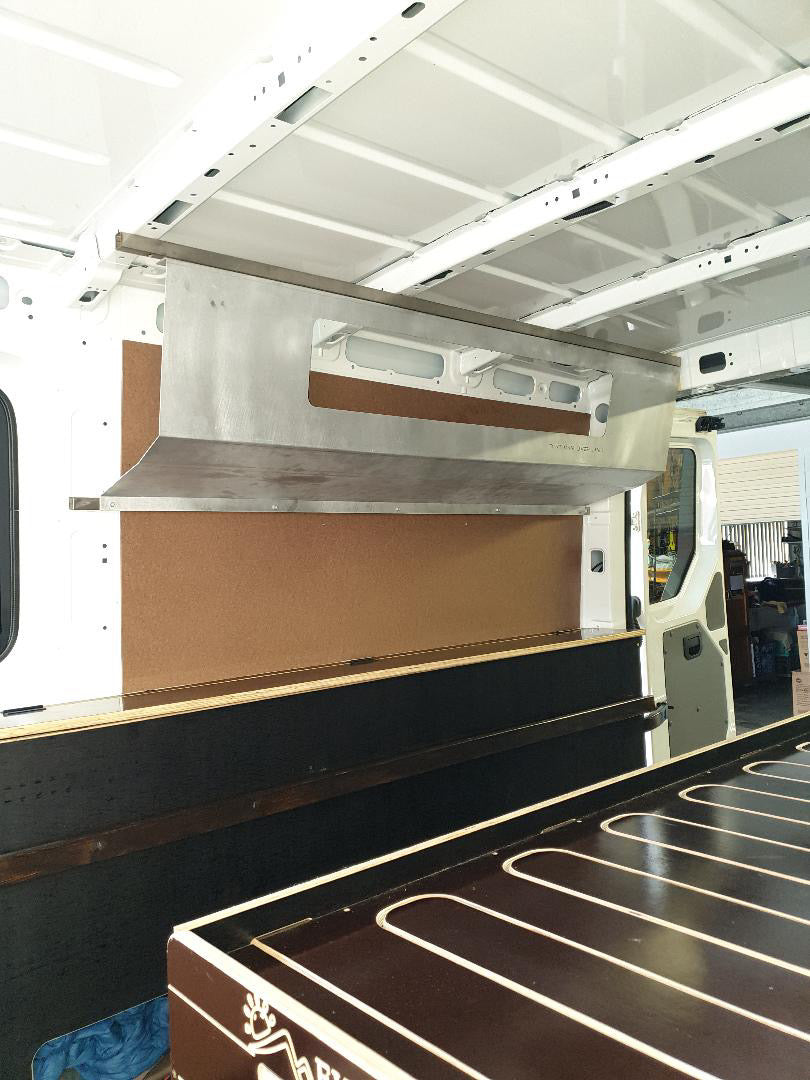

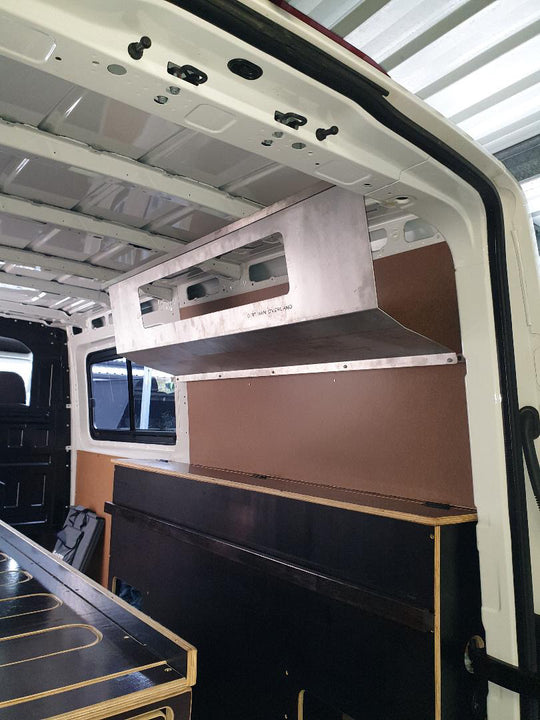

Installation Guidelines:

Install using 2–3mm galvanised metal self-tapping screws:

Fix directly into the van's internal steel side frame and roof cross beams
For fiberglass roof conversions: use timber screws into internal plywood ceiling beams
Recommended: 5 fixing points in the ceiling and 5 along the walls

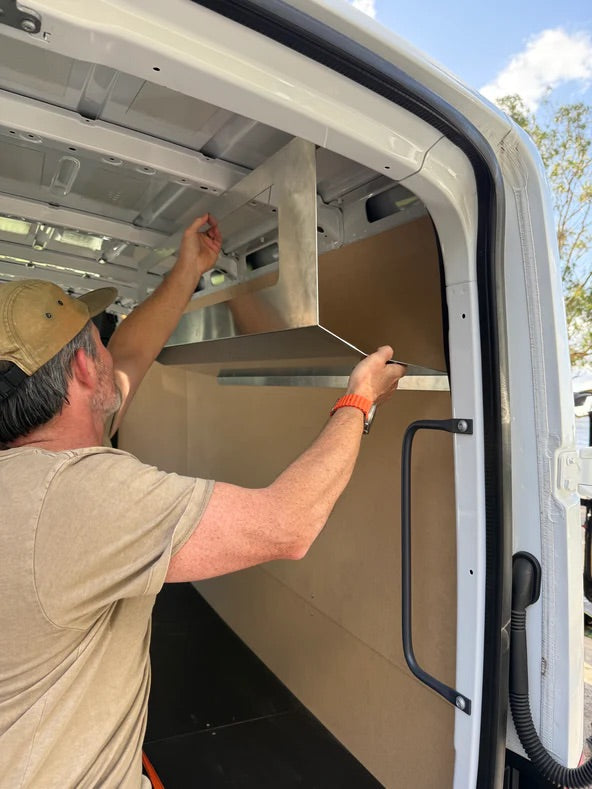

Quick install/removal: Installed in minutes with basic tools. Removable in under a minute for electrical upgrades or refinishing.
Flex note: Slight flex is normal and helps the cupboard conform to the vehicle's internal curve — this may limit end cap fitment.

Wholesale Availability:

Wholesale pricing available. Contact us directly for trade rates or bulk order enquiries.
